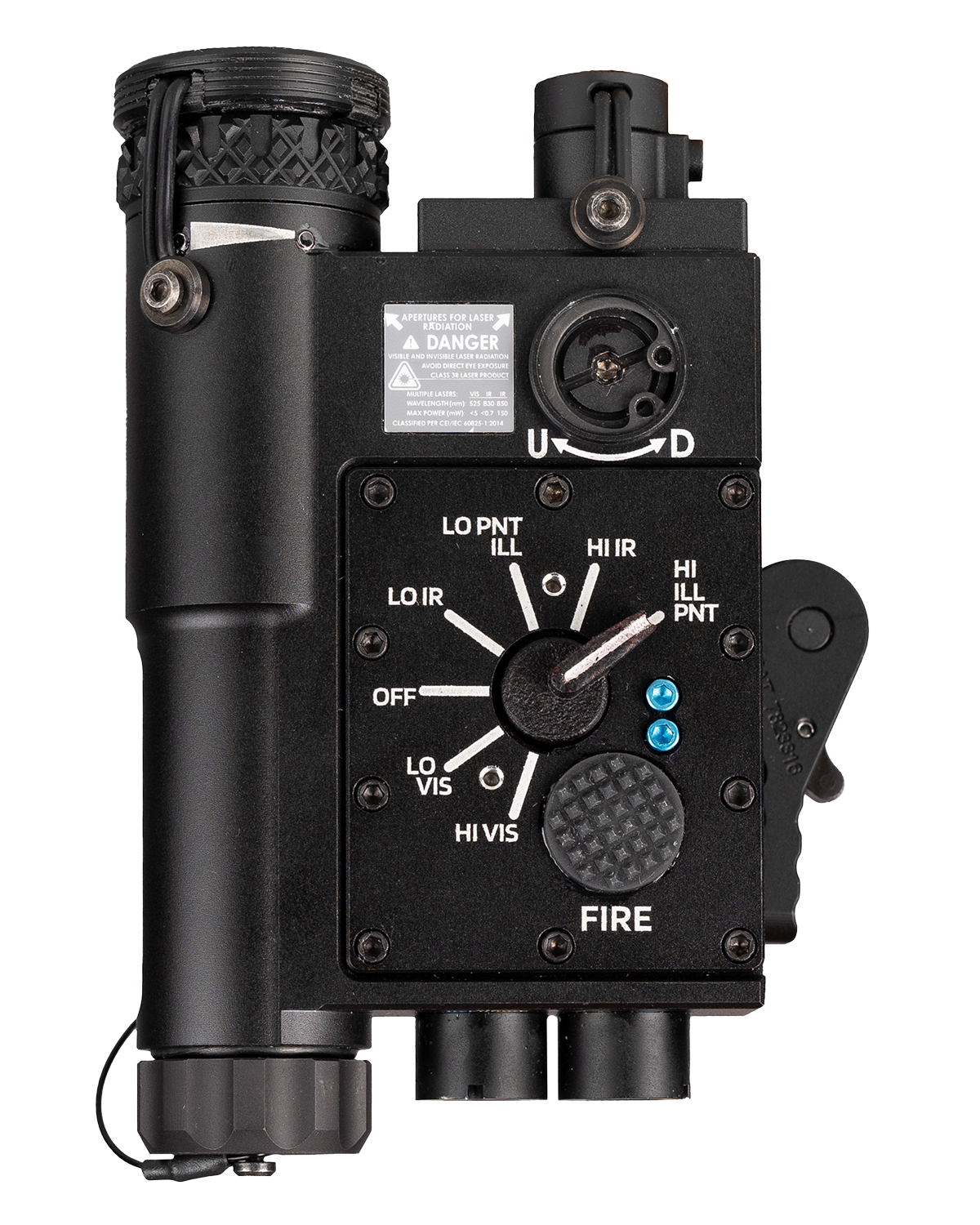

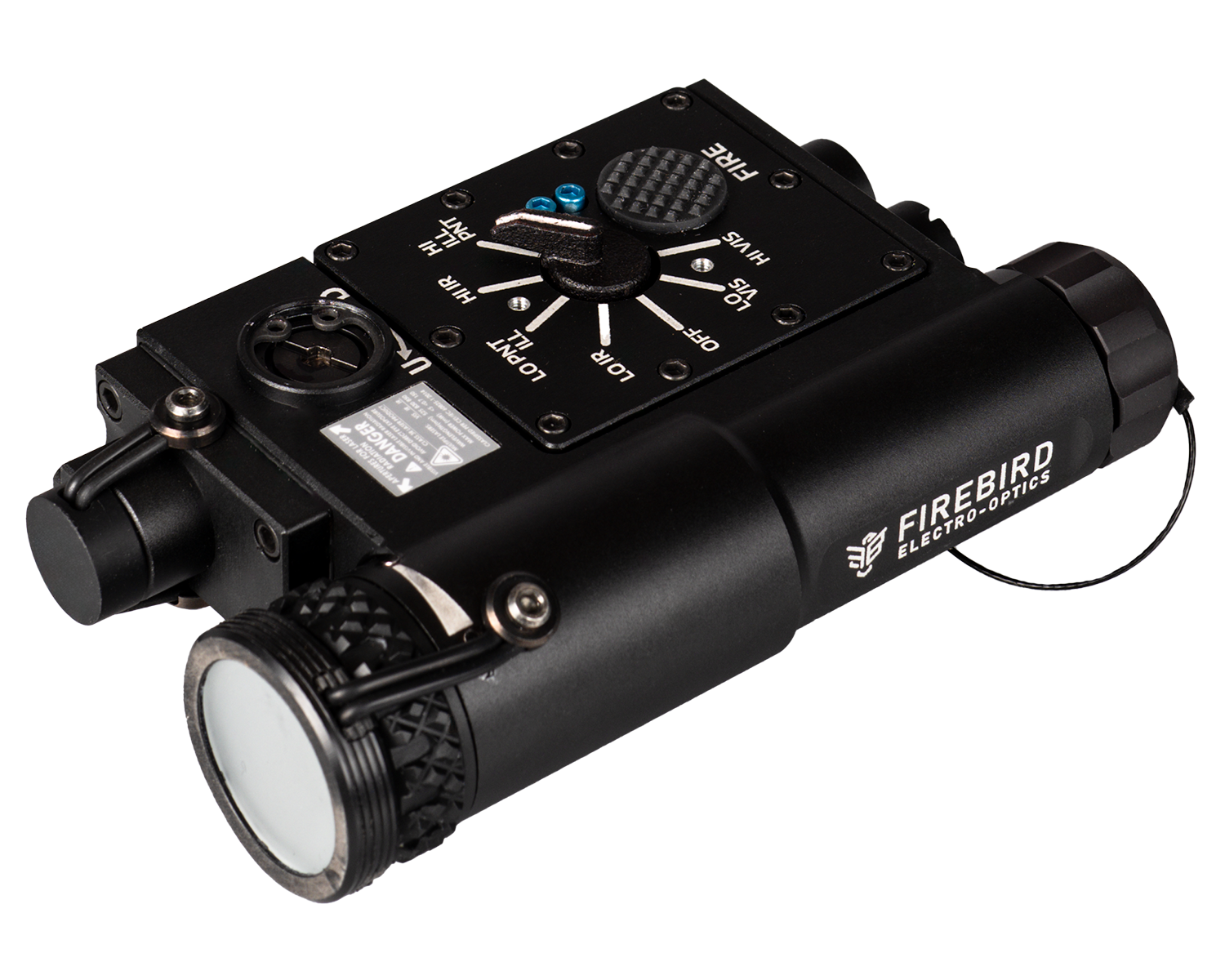

MAID-x

Advanced Multi-Aiming Illumination Device

Advanced Multi-Aiming Illumination Device

Collocated Vis & IR Laser Pointer (Patent Pending)

The MAID-X features a SWIR laser pointer, a visible green laser, and an adjustable SWIR VCSEL illuminator, integrated with cutting-edge technology to enhance targeting and illumination under diverse operational conditions. Built in Salt Lake City, Utah, the MAID-X offers sophisticated functionality on any MIL-STD-1913/Picatinny rail equipped firearm, ensuring optimal performance where it matters most.

  • Visible Green Laser: FDA Class IIIb

    IR Laser Pointer: Class IIIb

    IR VCSEL Illuminator: Class IIIb

  • Visible Green Laser: 25mW (High) / 1mW (Low)

    IR Laser Pointer: 25mW (High) / 1mW (Low)

    IR VCSEL Illuminator: 250mW (High) / 40mW (Low)

  • Visible Green Laser: 530nm ± 5nm

    IR Laser Pointer and VCSEL Illuminator: 1064nm ± 5nm

  • Visible and IR Laser: 0.5 – 0.8 mRad

    IR VCSEL Illuminator: 1° – 20°, >30º with diffuser

  • Visible Green Laser: Up to 1750m (Night), 75m (Day)

    IR Laser: Up to 3500m (Night only)

    IR VCSEL Illuminator: Up to 2000m (Night only)

  • All components: -20° to +51°C

  • 1 x CR123A (Up to 2.25 hours on high, 8+ hours on low mode)

  • Weight: 8.0 oz (with battery)

    Dimensions: Length 4.58 in x Width 2.25 in x Height 1.31 in

    Material: Aircraft aluminum 6061-T6 with MIL-SPEC Type III hardcoat

  • Low-profile bolt-on

  • One year

Designed for precision and durability, the MAID-X is available exclusively to military and law enforcement agencies. This device is also subject to export controls. With its advanced AI-driven functionality and VCSEL technology, the MAID-X sets a new standard for tactical illumination and targeting solutions.
